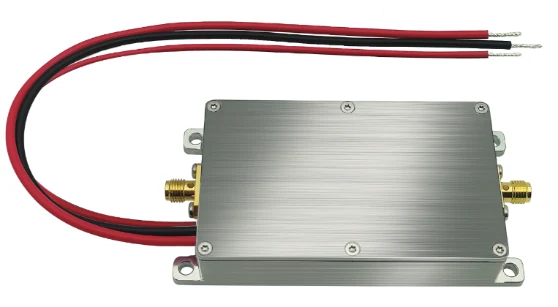

GaN Unidirectional Amplifiers · 10–60 W

Gain: 40 ± 1 dB · Supply: 24 V (10–30 W) / 28 V (40–60 W) · Connector: SMA female
Output options: 10 W (40 dBm) · 20 W (43) · 30 W (45) · 40 W (46) · 50 W (47) · 60 W (48 dBm)
Weight: 0.15 kg (96 mm housing) / 0.21 kg (132 mm housing) · DC leads: 15 cm red/black wire

19 narrowband models from 200 MHz to 5.85 GHz — 114 orderable part numbers. P/N format: AW-PA-<f_low>-<f_high>-<power>-S. Housings ≤3.6 GHz: 96×53×17 mm (0.15 kg); ≥4.9 GHz: 132×53×17 mm (0.21 kg).

Working Frequency	10 W (40 dBm)	20 W (43 dBm)	30 W (45 dBm)	40 W (46 dBm)	50 W (47 dBm)	60 W (48 dBm)
200–300 MHz	AW-PA-200-300-10-S	AW-PA-200-300-20-S	AW-PA-200-300-30-S	AW-PA-200-300-40-S	AW-PA-200-300-50-S	AW-PA-200-300-60-S
300–400 MHz	AW-PA-300-400-10-S	AW-PA-300-400-20-S	AW-PA-300-400-30-S	AW-PA-300-400-40-S	AW-PA-300-400-50-S	AW-PA-300-400-60-S
400–500 MHz	AW-PA-400-500-10-S	AW-PA-400-500-20-S	AW-PA-400-500-30-S	AW-PA-400-500-40-S	AW-PA-400-500-50-S	AW-PA-400-500-60-S
500–600 MHz	AW-PA-500-600-10-S	AW-PA-500-600-20-S	AW-PA-500-600-30-S	AW-PA-500-600-40-S	AW-PA-500-600-50-S	AW-PA-500-600-60-S
600–700 MHz	AW-PA-600-700-10-S	AW-PA-600-700-20-S	AW-PA-600-700-30-S	AW-PA-600-700-40-S	AW-PA-600-700-50-S	AW-PA-600-700-60-S
700–830 MHz	AW-PA-700-830-10-S	AW-PA-700-830-20-S	AW-PA-700-830-30-S	AW-PA-700-830-40-S	AW-PA-700-830-50-S	AW-PA-700-830-60-S
830–960 MHz	AW-PA-830-960-10-S	AW-PA-830-960-20-S	AW-PA-830-960-30-S	AW-PA-830-960-40-S	AW-PA-830-960-50-S	AW-PA-830-960-60-S
960–1100 MHz	AW-PA-960-1100-10-S	AW-PA-960-1100-20-S	AW-PA-960-1100-30-S	AW-PA-960-1100-40-S	AW-PA-960-1100-50-S	AW-PA-960-1100-60-S
1160–1280 MHz	AW-PA-1160-1280-10-S	AW-PA-1160-1280-20-S	AW-PA-1160-1280-30-S	AW-PA-1160-1280-40-S	AW-PA-1160-1280-50-S	AW-PA-1160-1280-60-S
1220–1420 MHz	AW-PA-1220-1420-10-S	AW-PA-1220-1420-20-S	AW-PA-1220-1420-30-S	AW-PA-1220-1420-40-S	AW-PA-1220-1420-50-S	AW-PA-1220-1420-60-S
1450–1550 MHz	AW-PA-1450-1550-10-S	AW-PA-1450-1550-20-S	AW-PA-1450-1550-30-S	AW-PA-1450-1550-40-S	AW-PA-1450-1550-50-S	AW-PA-1450-1550-60-S
1550–1620 MHz	AW-PA-1550-1620-10-S	AW-PA-1550-1620-20-S	AW-PA-1550-1620-30-S	AW-PA-1550-1620-40-S	AW-PA-1550-1620-50-S	AW-PA-1550-1620-60-S
1650–1760 MHz	AW-PA-1650-1760-10-S	AW-PA-1650-1760-20-S	AW-PA-1650-1760-30-S	AW-PA-1650-1760-40-S	AW-PA-1650-1760-50-S	AW-PA-1650-1760-60-S
2.2–2.4 GHz	AW-PA-2200-2400-10-S	AW-PA-2200-2400-20-S	AW-PA-2200-2400-30-S	AW-PA-2200-2400-40-S	AW-PA-2200-2400-50-S	AW-PA-2200-2400-60-S
2.4–2.485 GHz	AW-PA-2400-2485-10-S	AW-PA-2400-2485-20-S	AW-PA-2400-2485-30-S	AW-PA-2400-2485-40-S	AW-PA-2400-2485-50-S	AW-PA-2400-2485-60-S
3.4–3.6 GHz	AW-PA-3400-3600-10-S	AW-PA-3400-3600-20-S	AW-PA-3400-3600-30-S	AW-PA-3400-3600-40-S	AW-PA-3400-3600-50-S	AW-PA-3400-3600-60-S
4.9–5.05 GHz	AW-PA-4900-5050-10-S	AW-PA-4900-5050-20-S	AW-PA-4900-5050-30-S	AW-PA-4900-5050-40-S	AW-PA-4900-5050-50-S	AW-PA-4900-5050-60-S
5.15–5.35 GHz	AW-PA-5150-5350-10-S	AW-PA-5150-5350-20-S	AW-PA-5150-5350-30-S	AW-PA-5150-5350-40-S	AW-PA-5150-5350-50-S	AW-PA-5150-5350-60-S
5.725–5.85 GHz	AW-PA-5725-5850-10-S	AW-PA-5725-5850-20-S	AW-PA-5725-5850-30-S	AW-PA-5725-5850-40-S	AW-PA-5725-5850-50-S	AW-PA-5725-5850-60-S

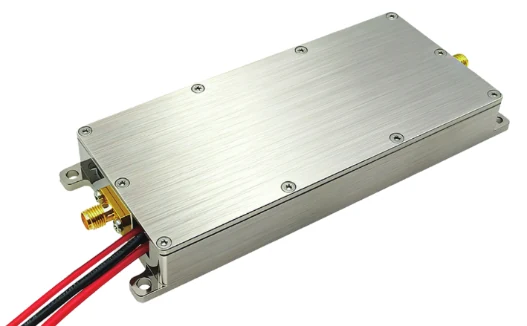

Broadband FPV VTX Amplifiers · 5–50 W

Gain: 35–40 ± 1 dB by power class · Supply: 22–28 V DC · Connector: SMA female
Housing: 90×46×17 mm / 120 g (5–10 W) · 132×53×17 mm / 210 g (20–50 W) · DC leads: AWG18, 20 cm

Octave-band coverage from 100 MHz to 7.2 GHz — one module covers your whole VTX band plan. All part numbers below are orderable directly.

Band	5 W	10 W	20 W	30 W	40 W	50 W
100–1000 MHz	AW-PA-100-1000-05-S	AW-PA-100-1000-10-S	—	—	—	—
1–2 GHz	AW-PA-1000-2000-05-S	AW-PA-1000-2000-10-S	AW-PA-1000-2000-20-S	AW-PA-1000-2000-30-S	AW-PA-1000-2000-40-S	AW-PA-1000-2000-50-S
2–3 GHz	AW-PA-2000-3000-05-S	AW-PA-2000-3000-10-S	AW-PA-2000-3000-20-S	AW-PA-2000-3000-30-S	AW-PA-2000-3000-40-S	AW-PA-2000-3000-50-S
3–4 GHz	AW-PA-3000-4000-05-S	AW-PA-3000-4000-10-S	AW-PA-3000-4000-20-S	AW-PA-3000-4000-30-S	AW-PA-3000-4000-40-S	AW-PA-3000-4000-50-S
4–5 GHz	AW-PA-4000-5000-05-S	AW-PA-4000-5000-10-S	AW-PA-4000-5000-20-S	AW-PA-4000-5000-30-S	AW-PA-4000-5000-40-S	AW-PA-4000-5000-50-S
5–6 GHz	AW-PA-5000-6000-05-S	AW-PA-5000-6000-10-S	AW-PA-5000-6000-20-S	AW-PA-5000-6000-30-S	AW-PA-5000-6000-40-S	AW-PA-5000-6000-50-S
6–7.2 GHz	AW-PA-6000-7200-05-S	AW-PA-6000-7200-10-S	AW-PA-6000-7200-20-S	AW-PA-6000-7200-30-S	AW-PA-6000-7200-40-S	AW-PA-6000-7200-50-S
100–400 MHz	—	—	AW-PA-100-400-20-S	AW-PA-100-400-30-S	AW-PA-100-400-40-S	AW-PA-100-400-50-S
400–1000 MHz	—	—	AW-PA-400-1000-20-S	AW-PA-400-1000-30-S	AW-PA-400-1000-40-S	AW-PA-400-1000-50-S

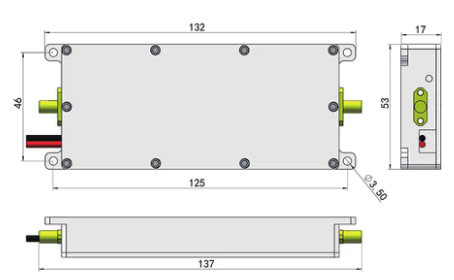

N-Type GaN Unidirectional Amplifiers · 10 W

Gain: 40 ± 1 dB · Output: 10 W (40 dBm) · Supply: 24 V, 1.5 A · Connector: N-type
Housing: 128.5×53×17 mm · 0.26 kg — rugged option for antenna-direct and mast-mount installs

Working Frequency	Base Model	Output	Housing / Weight
200–300 MHz	AW-PA-200-300-10-N	10 W (40 dBm)	128.5×53×17 mm · 0.26 kg
300–400 MHz	AW-PA-300-400-10-N	10 W (40 dBm)	128.5×53×17 mm · 0.26 kg
400–500 MHz	AW-PA-400-500-10-N	10 W (40 dBm)	128.5×53×17 mm · 0.26 kg
500–600 MHz	AW-PA-500-600-10-N	10 W (40 dBm)	128.5×53×17 mm · 0.26 kg
600–700 MHz	AW-PA-600-700-10-N	10 W (40 dBm)	128.5×53×17 mm · 0.26 kg
700–830 MHz	AW-PA-700-830-10-N	10 W (40 dBm)	128.5×53×17 mm · 0.26 kg
830–960 MHz	AW-PA-830-960-10-N	10 W (40 dBm)	128.5×53×17 mm · 0.26 kg
960–1100 MHz	AW-PA-960-1100-10-N	10 W (40 dBm)	128.5×53×17 mm · 0.26 kg
1160–1280 MHz	AW-PA-1160-1280-10-N	10 W (40 dBm)	128.5×53×17 mm · 0.26 kg
1220–1420 MHz	AW-PA-1220-1420-10-N	10 W (40 dBm)	128.5×53×17 mm · 0.26 kg
1450–1550 MHz	AW-PA-1450-1550-10-N	10 W (40 dBm)	128.5×53×17 mm · 0.26 kg
1550–1620 MHz	AW-PA-1550-1620-10-N	10 W (40 dBm)	128.5×53×17 mm · 0.26 kg
1650–1760 MHz	AW-PA-1650-1760-10-N	10 W (40 dBm)	128.5×53×17 mm · 0.26 kg
2.2–2.4 GHz	AW-PA-2200-2400-10-N	10 W (40 dBm)	128.5×53×17 mm · 0.26 kg
2.4–2.485 GHz	AW-PA-2400-2485-10-N	10 W (40 dBm)	128.5×53×17 mm · 0.26 kg

Need a band or power level you don't see here, or integration support for your airframe? Tell us your link budget — custom bands and firmware-free drop-in replacements are available.
