Overview

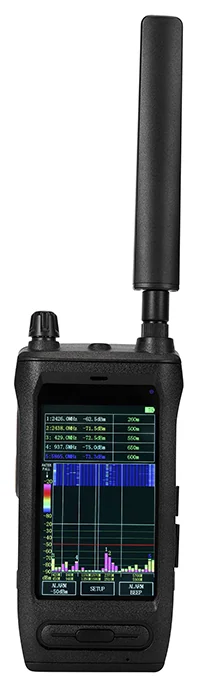

The AW-PSA360 packages professional spectrum-sensing into a rugged handheld anyone can use. It scans up to 20 configurable bands across 30 MHz–6 GHz, shows real-time signal strength and a scrolling waterfall of spectrum history, ranks the five strongest signals with estimated distance, and alerts by beep or vibration as a source approaches — ideal for drone/FPV detection, indoor sweeps, jammer and transmitter hunting, and coverage testing.
Specifications
| Model | AW-PSA360 |
|---|---|
| Frequency Range | 30 – 6000 MHz |
| RBW | 10 – 500 kHz (default 500 kHz) |
| DANL (noise floor) | -110 dBm (typical) |
| Amplitude Accuracy | ±1 dBm (factory calibrated) |
| Measurement Range | -90 to -20 dBm |
| Sweep Time | 2 ms / point |
| Displays | Histogram · waterfall · top-5 ranking · distance estimate |
| Alarm | -90 to -20 dBm, 1 dB step; silent / beep / vibrate |
| Bands | Up to 20 user-configurable bands |
| Display | 3.97" TFT touchscreen, 800×480 |
| RF Port | SMA female (50 Ω) |
| Battery | Li-ion 5800 mAh, ~8 h runtime |
| Charging | USB Type-C, 5 V / 1 A |
| Dimensions | 154 × 79 × 38 mm (excl. knob & antenna) |
| Operating Temp. | -20 to +45 °C |
Applications
Drone / FPV Detection
Spot 2.4 GHz and 5.8 GHz video and control links, track approach by rising signal.
Indoor Sweeps
Find covert transmitters and abnormal RF activity in rooms and vehicles.
Transmitter & Jammer Hunting
Locate walkie-talkies, base stations, radios and interference sources.
Coverage & Line Testing
Wireless coverage checks and production-line batch testing.
Downloads
Full user manual with operation, interface and setup details.
